Portable Recirculating Water Chiller

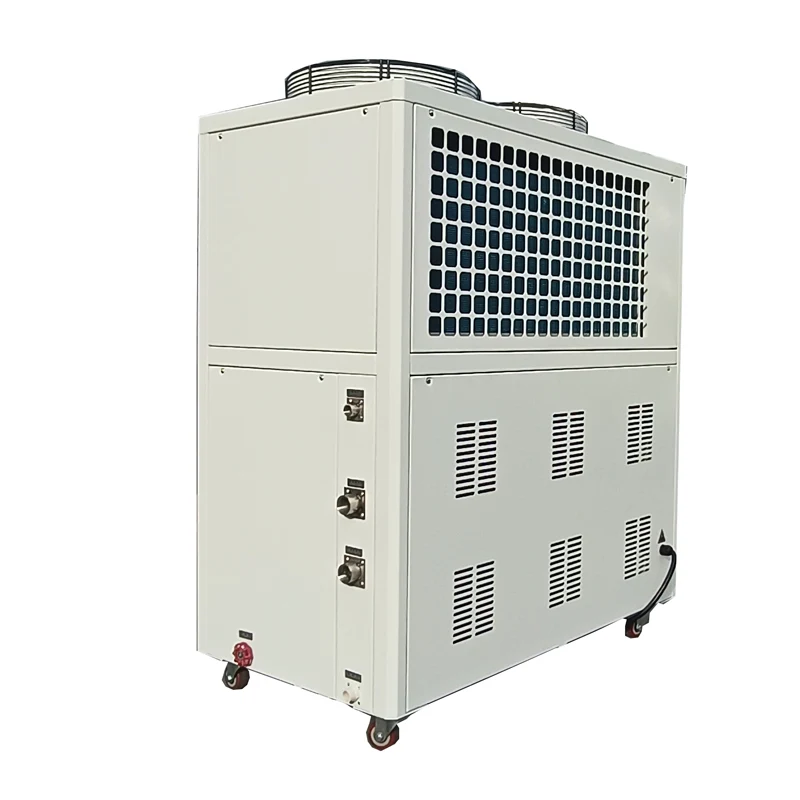

Tongwei portable recirculating water chiller is a cooling system engineered for industrial,medical,laser processing and laboratory application .It includes the refrigeration circuit, controls and electrics, process water pump and reservoir(water tank) all within a single unit. Built with Stainless steel evaporator and hermetic scroll compressor,it delivers precision water temperature control (-40℃ to 35℃）.

Portable recirculating water chiller has four footprints, are mobile and are located near the process or machines being cooled. The capacity of these water chiller usually range from 1KW to 50KW in cooling capacity .The chiller uses PID temperature control with real-time monitoring ensures accuracy ± 0.1℃,which is critical for laboratory ,semiconductor manufacturing and pharmaceutical processes.Tongwei water chiller is with dual safety protection(low water level,overheat,phase failure alarms) prevents chiller damage and downtime.

1.Portable Recirculating Water Chiller Technical Specification

2.Features And Advantages of Portable Recirculating Water Chiller

»Standard portable recirculating water chiller cooling capacity available from 1/2 tons – 10 tons

»Air and water cooled chiller systems

»Temperature range from -5°C to 35°C

»Temperature control to within 0.5°F

»SS coil in water tank,shell&tube or SS brazed-plate type evaporator for optional. Plate type evaporator provides large heat transfer surface, low coolant pressure loss and a compact design.

»208-570V 60HZ 3Phase power supply customize for USA ,Philippines,Mexico,Peru Customers

»Eco-friendly R410A /R407c refrigerant ensures compliance with global environmental standards.

3.Spare Part for Portable Recirculating Water Chiller

4.How I Can Choose The Right Portable Recirculating Water Chiller for Your Application?

There are five important chiller specifications you need consider when you choose a chiller for your application :the cooling capacity for chiller ,the voltage required for operation, the associated pump horsepower and flow rate (contact us for custom selection), refrigerant, and the evaporator type.

4.1 Calculate Right Cooling Capacity For Chiller

One of the most frequently ask about how we can know the cooling capacity for chillers.  We use KW ,Ton, But/h,Kcal/h to choose chiller cooling capacity :1 KW=860 kcal/h ;  1 TON=3.517 KW;

1 KW=3412 Btu/h;

There is also a formula to calculate the cooling capacity for chiller:.

Cooling Capacity(kw)= Flow Rate(m3/h)*Temp Change(T1-T2)/0.86

Heat Load= C(specific heat)* M(quality output per hour )*Temp Change(T1-T2)

Oversize the chiller by 20% Ideal Size in KW = KW x 1.2

Noted : T1:Incoming Water Temperature (℃)      T2:Required Chilled Water Temperature(℃)

For example, what size of chiller is required to cool 10m³ water from 35°c to 15 °c in 1 hour?

Temperature Differential = 35℃-15℃=20℃

Water Flow Rate = 10 m³/hour

Cooling Capacity in KW = 10 x 20 ÷ 0.86 = 232 KW

Oversize the chiller = 232 x 1.2 = 278.4KW

278.4 kw cooling capacity for chiller is required.

4.2 Power

Different countries and regions have different standards for industrial electricity, the common power supplies are 208-230V, 380-420V,440-480V,50Hz or 60Hz, 3phase.

Such in Philippines ,the power supply is 220V 60HZ 3PH , 380V 60HZ 3PH ,460V 60HZ 3PH;

in Singapore and Malaysia ,the power supply is 415V 50HZ 3PH;

in Mexico ,the power supply is 220V 60HZ 3PH;

In USA ,the power supply is 208V 60HZ 3PH;575V 60HZ 3PH;480V 60HZ 3PH and so on

4.3 Water Pump

When you decide the capacity/tonnage of the chiller, we will recommend you the suitable pump in KW,which standard water pump is about 2 bar .If you need more high water pressure , please us when you inquiry.

4.4 Refrigerant

R22, R410A, R407C, R404A, R134A are optional choices.

R22: good cooling effect, but R22 is considered a powerful greenhouse gas, so it’s forbidden in most countries.

R410A: eco-friendly, R-410A has replaced R-22 as the preferred refrigerant for use in residential and commercial air conditioners in Japan, Europe, and the United States. R-410A operates at higher pressures than other refrigerants.

R407C: a good replacement for R22, good cooling effect.

R404A: suitable for application that requires low temperature(below -10°c).

R134A: a non-flammable gas used primarily as a “high-temperature” refrigerant, suitable for air-cooled chiller working at a high ambient temperature above 50℃.

4.5 Evaporator Choose

Chillers generally have two types of evaporators: one is coil in water tank evaporator ,the other one is shell and tube evaporator.

Coil and tank evaporator, which has a built-in water storage tank for more convenient use,so there’s no need for extra buffer tanks. This is also our standard evaporator for chiller , if you don’t have buffer tank ,we just use this evaporator for your chiller.

Shell and tube type evaporator, which requires an additional water buffer tank to connect .

5.Why Choose Tongwei As Your Portable Recirculating Water Chiller Supplier ?

Custom chiller size

whether it is portable, compact, large and small recirculating water chillers, we can custom design them according to your requirements. no matter how many /KW/tons of chiller you need , we can give you our the best solution.

Custom chiller types

Tongwei provide recirculating water chillers of various refrigeration types, including but not limited to air-cooled chiller and water-cooled chiller regardless of the type of refrigeration compressor, we can design it according to your requirements.

Custom water temperature range

Tongwei can create a custom solution for temperatures from -40℃ to 35℃ ±0.1°C stability. Custom temperature ranges for specific industries.

Custom chiller voltage

Customize chiller voltage and phase according to your needs. Optional 220V/60HZ, 380V/50HZ,  400-415V/50HZ, 460V/60HZ, 440V~480V/60HZ, etc for different countries.

24/7 Technical Support

Believe that we will always be by your side. Whether you have a question or need a quote, there‘s always someone answering the phone 24 hours a day.Our after sales service team provides lifetime assistance for troubleshooting and maintenance. If the spare part for chiller is broken ,Tongwei will provide it for replace.

Fast Quote

Get a quote for your project today! We typically provide a custom quote within 2 hours.

Durable, reliable chiller machine & Competitive Price

Our portable recirculating water chillers are manufactured from high quality materials and we offer a competitive warranty on all industrial chillers.

6.Shipping Way of Portable Recirculating Water Chiller

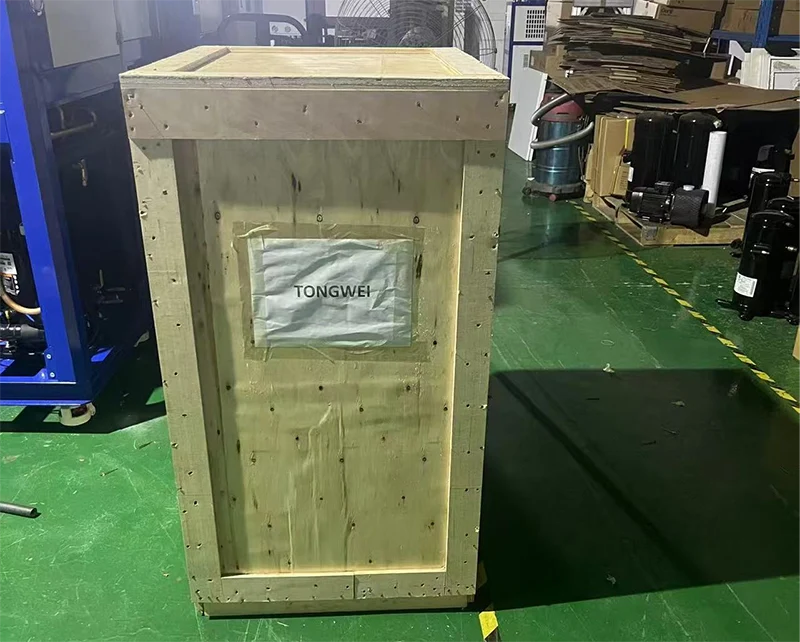

As a professional Portable recirculating water chiller supplier &exporter,we have our own shipment forwarder to arrange the shipment .Our chiller machine is with plywood packing,which prevent damage during transportation and meet export standards.There are three ways can delivery your chiller unit :

1.Ship by Air: As the chiller is with compressor ,water pump and fans ,the compressed refrigerant and oil inside the compressor is a dangerous item with the possibility of explosion , so it needs to release the compressed refrigerant before transportation. (It means that water chiller without refrigerant when choosing this shipping way. After the machine arrives at your destination, you need to add refrigerant by local professionals. The airline company also request us to provide many documents to prove that the chiller not a dangerous product. The freight cost by air is very high may be higher than the cost of chiller , So By air for delivery is not the mode of transport recommended to our customer.

2.Ship by Sea: The transportation time is longer than by air , but the freight cost is cheap ,and there is no need to add refrigerant after the equipment arrives at the destination.This shipping way is the most suitable mode of transportation for you to delivery your local port.

3.If you have your own shipment container in your other supplier in China, we can help you delivery the chiller machine to your supplier in any city of China .
